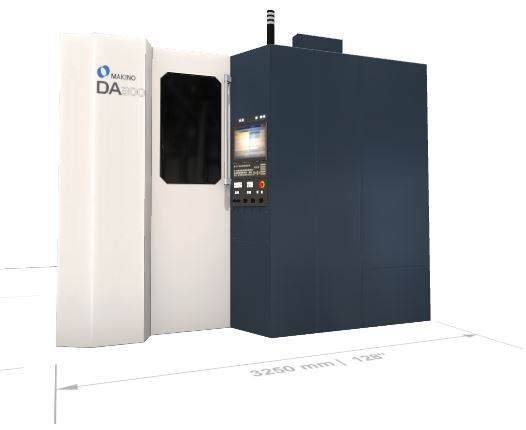

3D model of DA300
Tip: Use the scroll wheel to zoom in and out
Some machines may be shown with optional equipment


Vertical 5-Axis

DA300 VMC Reduces Machining Time for Complex Production Parts

The DA300 is inspired by the best design characteristics from both vertical and horizontal machine platforms to deliver the highest productive capabilities for multi–axis workpieces in the very smallest of machine footprints.

These features make the DA300 ideal for single setup, multi–side accessibility, or full contouring capability to quickly and efficiently tackle a wide variety of complex production part applications – typical of industrial hydraulic & pneumatics elements, optical, electrical & semiconductor markets, medical & dental products, die – cast parts, automotive components, aircraft and aerospace parts as well as contract job – shop work.

Request a Quote

Technical Specifications

The DA300 Five – Axis Vertical Machining Center combines a rigid structure and high dynamic motion control to significantly reduce part cycle times while maintaining very accurate performance.  Equipped with an integral, DD – motor designed A – Axis and C – Axis, the machine provides five – side access for single set-up production of complex production parts.

At 20,000 RPM, 29.5 HP, HSK – A63, the machine spindle provides the capability to tackle rigorous milling, drilling and tapping tasks associated with a wide variety of production parts.  A standard, 60 tool magazine insures an extensive selection of tooling to address any part configuration.

To further minimize non – cut times, the DA300 is standardly equipped with a Vision BTS (Broken Tool Sensor) outside of the machine work zone to insure tooling integrity – but, not impact part cycle times.

The DA300 integral table rectangular table (340 mm x 300 mm) is prepared with pneumatic ports design to readily integrate into a pallet system providing for quick, efficient part exchange – maximizing machine utilization.
Makino also offers two (2) WPS (Workpiece Pallet System) that can be field added to the DA300 machine.  These can be configured in a 7 pallet arrangement – that is field expandable – or a 19 pallet configuration.  The WPS provides “off – the – shelf” automation for a very productive five – axis machine.

The Makino Professional 6 control takes you from parts to profits with elegant functionality by making the point where human meets machine a seamless transition.  Streamlined screen layouts, operator assistance, new machine functions, and safety enhancements are accelerating and protecting your productivity.  For even greater productivity, Super Geometric Intelligence 5 (SGI.5) insures optimum performance during execution of the tool path – producing the shortest cycle times.
Standard Features:

  • Sixty (60) Tool Magazine
  • 20,000 rpm, 2 range, HSK–A63 Spindle
  • Automatic Spindle Lubricant Temperature Controller
  • Tilt-Trunion Table (A & C axes)
  • Integral Table (13.4” x 11.8”)
  • Machine temperature control:
    • “Core Cooled” Ballscrews
    • Support bearing & drive motor
    • A & C Axes DD Motors
  • Vision BTS
  • Automatic Lubrication Supply Unit
  • Base Coolant
  • Nozzle Coolant
  • 210psi Through Spindle Coolant
  • Overhead Shower Coolant
  • Right Discharge LUCC
  • Splash and Chip Shield
  • Makino Professional 6 Control
  • Makino Proprietary Super Geometric Intelligence SGI.5 Software
  • Data Center (1 GB)
  • Part Program Storage (2 GB)
  • Tool Offset Pairs (400 Total)
  • Rigid Tapping
  • Rigid Tap Retract Function
  • Five Axis Software:
    • TCP – Tool Center Point Control
    • DFO – Rotary Table Dynamic Fixture Offset
    • TWP – Tilted Work Plane Command
    • Three Dimensional Cutter Compensation
    • Inversed Time Function
    • Program Restart
    • 3-Dimensional Manual Feed;
    • Spindle-Table Interference Prevention Function
    • Collision Safeguard
  • Custom Macro (1,100 variables)
  • Helical Interpolation
  • Portable MPG
  • Air Dryer
  • Maintenance Advice System
  • Inch/Metric Selection
  • Fluorescent Worklight
  • Programming Data Input (G10)
  • Spindle Load Display
  • Spindle Load Monitoring
  • Tool Life Management
  • Direct Spare Tool Selection
  • Dual Safety Check
  • Signal Light (3 layer)6

Table: 300 mm x 340 mm
X: 450 mm Y: 620 mm Z: 500 mm

A Axis

150° (+30 to -120)

C Axis


Spindle RPM

20,000 (HSK - A63)

Rapid Traverse

60,000 mm/min

Cutting Feedrate

60,000 mm/min

Maximum Workpiece

450 mm diameter

Maximum Workpiece Size

Stand alone - ø450 x 400mm, Manual with chuck - ø450 x 295mm, WPS - □355 x 295mm

Maximum Workpiece Weight

Stand alone - 2250 kg, Manual with chuck - 215 kg, WPS - 80 kg

Maximum Payload

250 kg

ATC Capacity

60 tools

Chip to Chip

3.5 sec

Maximum Tool Diameter

70mm / 140mm (ALL / ADJ)

Maximum Tool Weight

8 kg
