V90S

Vertical 5‑Axis

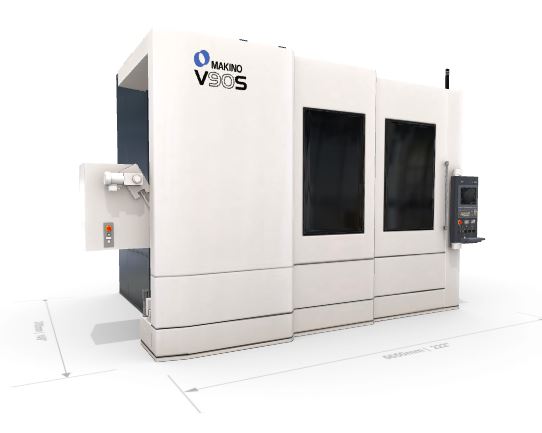

3D model of V90S
Tip: Use the scroll wheel to zoom in and out
Some machines may be shown with optional equipment

V90S

Vertical 5-Axis

The V90S cuts cycle times and reduces handwork in large, complex specialty dies and molds.

The V90S vertical machining center is a five-axis continuous processing platform designed for large die/mold part machining.  It features a tilting/rotating spindle, insuring that the tool tip can be positioned to provide optimum contact with the workpiece - extending tool life, providing outstanding surface finishes and minimizing post machining hand processes.

Request a Quote

Technical Specifications

Designed to meet stringent accuracy requirements, provide the finest finishes, maintain tight tolerance and increase productivity – the machine is ideal for high-speed finish machining of complex, multifaceted, 3-D contours typical of dies and molds.


Table: 2,000 mm x 1,300 mm
X: 2,000 mm Y: 1,300 mm Z: 800 mm

A-Axis

60° (-30° to +30°)

C-Axis

120° (-60° to +60°)

Spindle RPM

20,000 (HSK - A63)

Rapid Traverse

58 m/min

Cutting Feedrate

40 m/min

Maximum Workpiece

2,200 mm x 1,500 mm x 700 mm

Maximum Payload

5,000 kg

ATC Capacity

40 (120 optional)

Tool to Tool

8 sec

Maximum Tool Diameter

70 mm / 100 mm

Maximum Tool Weight

8 kg
