Pallet:

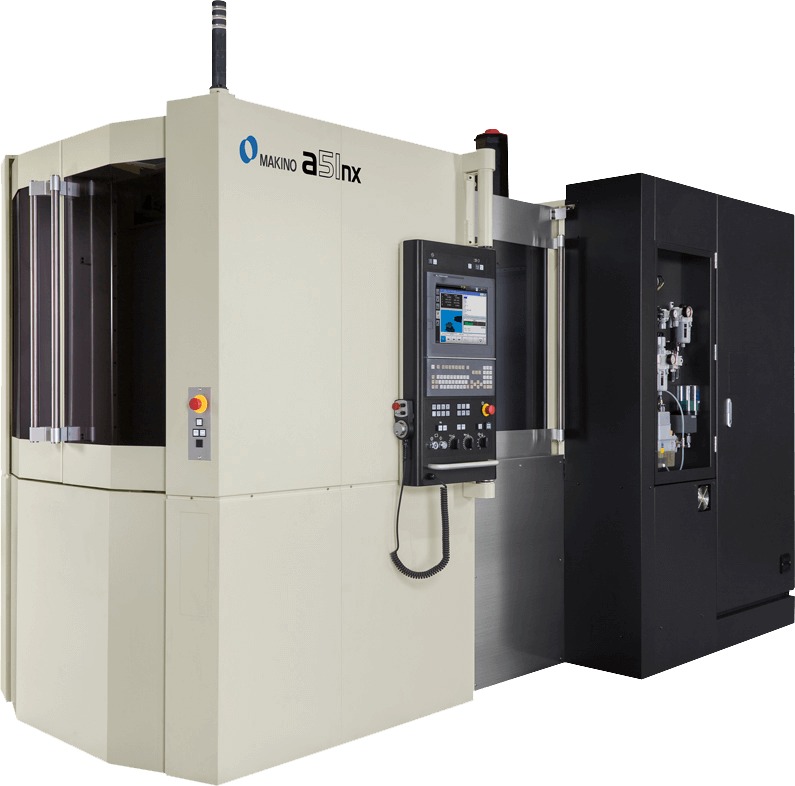

a51nx
a51nx สร้างขึ้นเพื่อการตัดเฉือนประสิทธิภาพสูง
Pallet:
400 x 400 mm
X:
560 mm
Y:
640 mm
Z:
640 mm
Rapid Traverse:
60,000 mm/min
Maximum Workpiece:
ø630 mm x 900 mm
Spindle Taper:
BT40 (HSK-A63)
Pallet:
500 x 500mm
X:
730mm
Y:
650mm std (730mm opt)
Z:
800mm
Rapid Traverse:
60,000mm/min
Maximum Workpiece:
ø800mm x 1,000mm
Spindle Taper:
BT40 (HSK-A63)
Pallet:
500 x 500mm
X:
730mm
Y:
650mm std (730mm opt)
Z:
800mm
Rapid Traverse:
60,000mm/min
Maximum Workpiece:
ø800mm x 1,000mm
Spindle Taper:
BT40 (HSK-A63)
Pallet:
500 x 500 mm
X:
800mm
Y:
750mm
Z:
830mm
Rapid Traverse:
(X / Y) 50,000 mm/min, (Z) 60,000 mm/min
Spindle Taper:
BT50 (HSK-100)
Pallet:
630 mm
X:
900 mm
Y:
900 mm
Z:
1020 mm
Rapid Traverse:
50,000 mm/min (Std) , 36,000 mm/min (High Torque)
Maximum Workpiece:
1,000 mm ø x 1,300 mm
Spindle Taper:
BT50 (HSK100)
Pallet:
1,000mm x 1,000mm (Optional 1,250 x 1,000mm)
X:
1,900mm
Y:
1.600mm
Z:
1,700mm
Rapid Traverse:
54,000 mm/min
Maximum Workpiece:
ᴓ2,100mm x 1,800mm
Pallet:
400 mm
X:
630mm
Y:
550mm
Z:
550mm
Rapid Traverse:
60,000 mm/min
Maximum Workpiece:
710mm ᴓ X 730mm (see drawing)
Spindle Taper:
HSK-A50
Table:
Φ320 mm
X:
750/400 mm
Y:
560/400 mm
Z:
500/500 mm
Rapid Traverse:
75000 mm/min
Maximum Workpiece:
Φ750 × 1030 / Φ600 × 770 mm (conditional)
Spindle Taper:
HSK-A50
Table:
Φ400 mm
X:
750 mm
Y:
560 mm
Z:
500 mm
Rapid Traverse:
75000 mm/min
Maximum Workpiece:
Φ790 × 740 mm (conditional)
Spindle Taper:
HSK-A63
